Product Description

The Ultrastar 7K4000 is an enterprise class drive that offers the industry's highest hard drive capacity at an enormous four terabytes of storage with 7200 RPM performance in a standard 3.5-Inch form factor. This drive uses Advanced Format, which increases the sector size on HDDs from 512 bytes to 4096 (4K) bytes, thereby increasing capacities and improving error correcting capabilities. Consult the Hitachi Advanced Format Technology Brief for more information. The Ultrastar 7K4000 delivers an extraordinary blend of capacity, performance and power efficiency. This model will ship with 64 MB cache buffer and 6 Gb/s SATA interface, making it an ideal storage platform for enterprise computing. Leveraging eighth-generation power management technology, including power-saving innovations like HiVERT technology, this drive delivers excellent power efficiency and thermal emissions to help manufacturers meet energy compliance targets and extend drive life.

From the Manufacturer

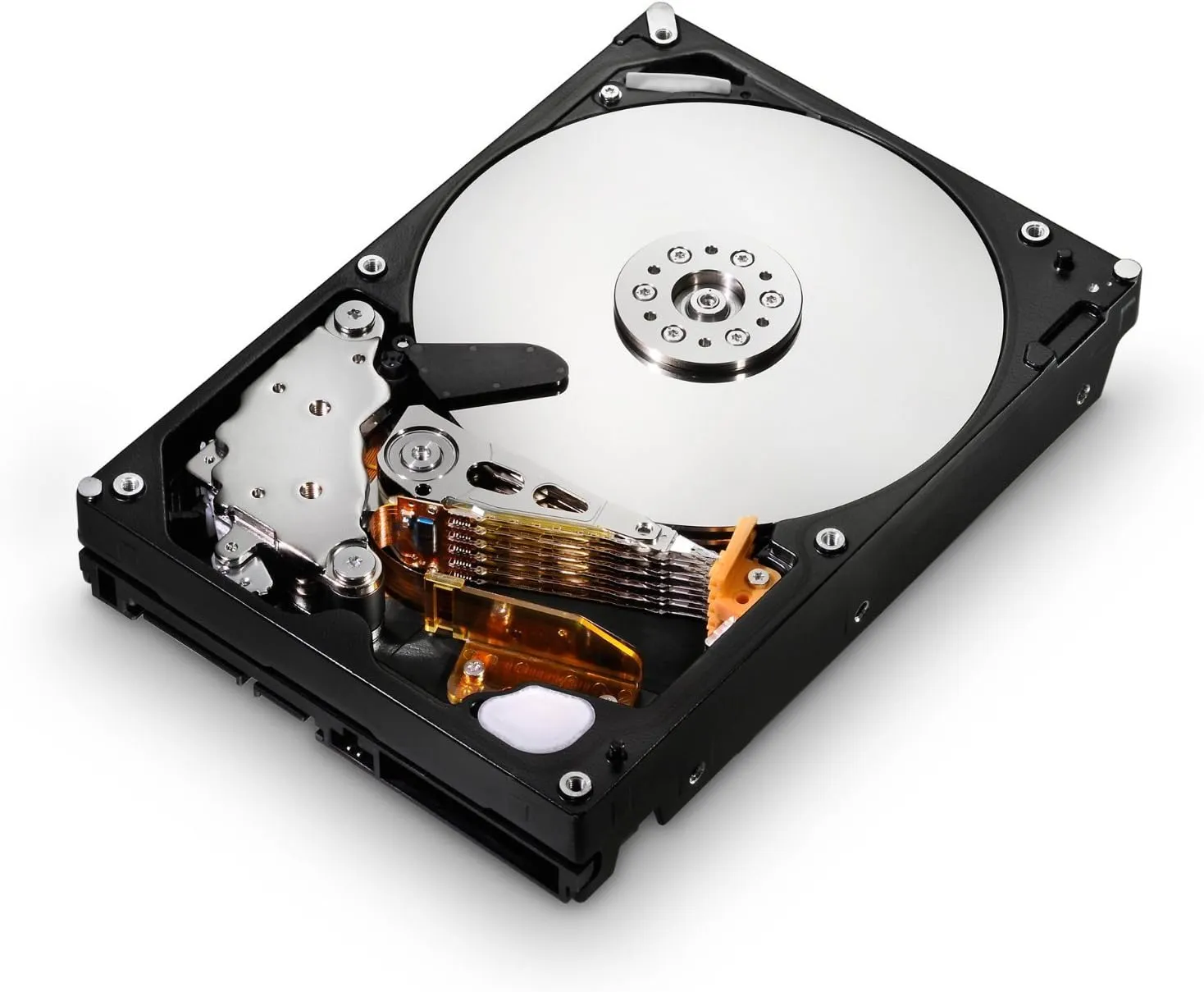

HGST Ultrastar 7K4000 3.5-Inch Enterprise Hard Disk Drives

• 2.0 million hours MTBF
• Up to 4 terabytes of capacity
• Advanced Format
• 512 byte emulation (512e)
• 6Gb/s SATA interface
• Dual Stage Actuator (DSA)
• Enhanced Rotational Vibration Safeguard (RVS)
• 24x7 accessibility for enterprise-class, capacity-optimized applications
• 5-year limited warranty

• Cloud storage
• Massive Scale Out (MSO)
• Data warehousing & mining
• Disk-to-disk backup & archiving
• RAID arrays
• Network Attached Storage (NAS)

Delivering Industry-Leading Quality and Reliability

HGST Ultrastar 7K4000 is the world's first 4TB 7200 RPM hard drive with a 2.0 million hours MTBF specification and backed by a full 5-year warranty. Ultrastar 7K4000 represents the sixth-generation HGST 5-platter design, which has been field proven by top server and storage OEMs and Internet giants. Engineered for the highest quality, the Ultrastar 7K4000 is put through grueling design tests during development and must pass stringent ongoing reliability testing during manufacturing. Ultrastar 7K4000 delivers by reducing downtime, eliminating service calls and minimizing TCO.

Increasing Capacity Density by One Third

To deal with the explosive petabyte (PB) growth, data centers require large amounts of efficient storage. Reducing W/GB without expanding floor space is vital to lowering operating costs. To meet these demands, Ultrastar 7K4000 delivers 33% more capacity in the same footprint at 24% lower W/GB than its predecessor, Ultrastar 7K3000. Now you can get 2.4 PB in the footprint of a standard 19-inch enterprise storage rack by stacking ten 4U, 60-bay enclosures. Ultrastar 7K4000 is an Advanced Format drive, using 4096-byte sector size to provide enormous capacity earlier than otherwise possible for environments optimized for this technology. Advanced Format drives are backwards compatible with legacy 512-byte sector size by offering built-in 512-byte emulation through the SATA interface.

Combining 7200 RPM Performance and Granular Power Control

Operating at 7200 RPM, Ultrastar 7K4000 offers better overall performance than slower RPM capacity-oriented drives, and does so at impressively low power-consumption rates. The Ultrastar 7K4000 can help data centers achieve lower AC power and HVAC requirements. With five Advanced Power Management modes, the 7K4000 achieves a 59% reduction in watts during low RPM idle mode, and uses less than 1W during standby/sleep modes, freeing up precious headroom for growing enterprise needs.

Innovation for a More Sustainable Environment

The Ultrastar 7K4000, with its halogen-free design and power-efficient operation, qualifies for the HGST EcoTrac classification, which identifies products that minimize environmental impact in the areas of product design, manufacturing, operation and disposal.

HGST Quality and Service

Ultrastar 7K4000 extends the company's longstanding tradition of performance and capacity leadership. The proven drive design enables high reliability and availability to customer data. Ultrastar quality, performance and world class technical support and service provides customers with a lower total cost of ownership over previous generations. HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a complete portfolio of HDD/SSD solutions to satisfy today's monumental computing needs.

Technical Specifications

• Interface SATA: 6Gb/s
• Available Capacities: 4TB, 3TB, 2TB
• Form factor: 3.5-inch
• Sector size: 512e bytes
• Max. areal density: 446 Gbits/sq. in
• Data buffer: 64 MB
• Rotational speed: 7200 RPM
• Max transfer rate: 600 MB/sec
• Sustained transfer rate: 171 MB/sec
• Seek time: 8.0ms
• Operating Temperature: 5 to 60 degrees C
• Idle Temperature: -40 to 70 degrees C
• Dimensions: 101.6 x 147mm
• Weight: 690g
